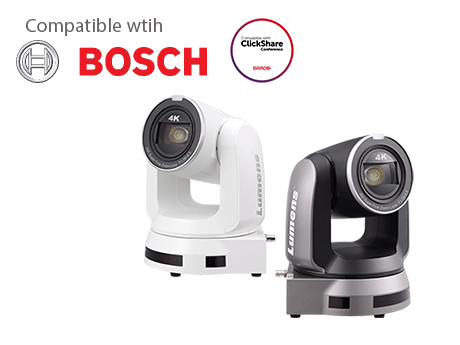

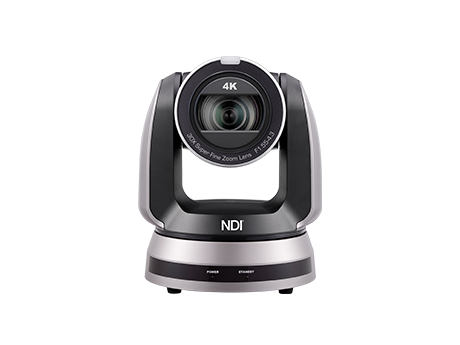

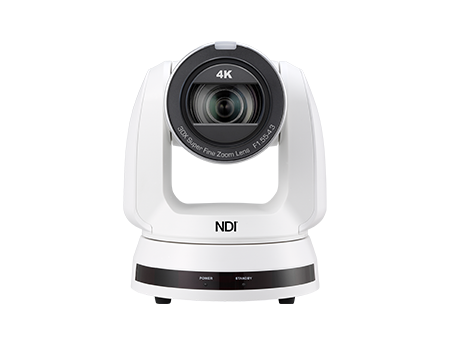

Lumens VC-A71P-HN,B 4K 60fps IP PTZ Camera (Grey)

VC-A71P-HN

4K NDI PTZ Camera with

NDI High Bandwidth and NDI HX3

• • 4K 60 fps, 30x Optical Zoom, 1/1.8″ Sensor
  • HDMI / 3G-SDI / 12G-SDI / IP / USB
  • Genlock Support
  • Rec.709 / BT.2020 Support
  • NDI High Bandwidth / NDI HX3 / RTSP / RTMP / RTMPS / MPEG- TS / SRT Support
  • FreeD Protocol for Live VR/AR Production
  • 802.1x Support


  NDI High Bandwidth

  Featuring NDI High Bandwidth, VC-A71P-HN delivers high-quality video over IP networks with ultra-low latency. Visually lossless, the I-Frame NDI codec is suitable for use in high-end video and TV production, live events and studios.

  NDI HX3 Technology

  VC-A71P-HN supports the latest version of the NDI protocol, NDI HX3. It delivers high-quality video with very low latency and connects directly to NDI networks. VC-A71P-HN outputs NDI HX3 and NDI High Bandwidth output simultaneously.




  Broadcast Connections

  VC-A71P-HN is equipped with dual SDI ports (12G and 3G) and a genlock connector to synchronize broadcast equipment. The camera can be powered over the Ethernet (PoE++); the network port can also be used for SRT and MPEG- TS output, as well as standard webstreaming protocols.

  BT.2020 / Rec.709

  Lumens VC-A71P-HN supports the BT.2020 color gamut for wide and precise color reproduction. With BT.2020, VC-A71P-HN can be matched with other cameras and deliver video output optimized for new generation UltraHD monitors.



  5 year warranty

  Lumens offers a 5-year warranty with all its products as standard.

  *The warranty policy may be different depending on the sales region, please contact your local salesperson.





  Support

  Contact Sales Service Request

  MORE DETAILS

  Sensor

  1/1.8″ 9.17 MP CMOS

  Video Format

  2160p: 59.94 / 50 / 29.97 / 25
  1080p: 59.94 / 50 / 29.97 / 25
  1080i: 59. 94 / 50
  720p: 59.94 / 50



  Video Output Interface

  HDMI / Ethernet / 12G-SDI / 3G-SDI / USB 3.0

  Genlock

  Yes

  Optical Zoom

  30x

  Digital Zoom

  12x

  Horizontal Viewing Angle

  63° (Wide) to 3.7° (Tele)

  Vertical Viewing Angle

  35.4° (Wide) to 2.1° (Tele)

  Diagonal Viewing Angle

  72.3° (Wide) to 4.2° (Tele)

  Aperture

  F1.6 ~ F4.8

  Focal Length

  6.5mm ~ 202mm

  Shutter Speed

  1/1 ~ 1/10,000 sec

  Minimum Object Distance

  1.5m (Wide/Tele)

  Video S/N Ratio

  > 50dB

  Minimum Illumination

  0.05 lux (F1.6, 50IRE, 30fps)

  Focus System

  Auto / Manual / Smart AF

  Gain Control

  Auto / Manual

  White Balance

  Auto / Manual

  Exposure Control

  Auto / Manual / Smart AE

  IQ Sync

  Yes

  WDR

  Yes

  3D NR

  Yes

  Image Flip

  Yes

  Color Space

  Standard / BT.2020 / REC.709

  AR/VR systems

  FreeD

  NDI Genlock

  Yes

  Tally Light

  Yes

  Panning Angle

  +170 ~ 170°

  Panning Speed

  0.01~300°/sec

  Tilting Angle

  +90 ~ -30°

  Tilting Speed

  0.01~300°/sec

  Preset Positions

  256

  HDMI/12G-SDI

  2160p59.94

  IP Stream

  NDI :
  HEVC(H.265) 4K59.94fps
  H.264 640×360 29.97fps
  or
  RTSP :
  HEVC(H.265) 4K 59.94fps
  H.264 1080p 59.94fps
  H.264 640×360 29.97fps

  IP Compression

  H.264 / HEVC(H.265)

  USB Output

  H.264 4K30fps
  MJPEG 1080p30

  USB Compression

  H.264 / MJPEG

  IP Protocol

  NDI High Bandwidth / NDI HX3 / NDI HX2 / RTSP / RTMP / RTMPS / MPEG-TS / SRT

  PoE

  PoE++ (IEEE802.3bt)

  Input

  Line In/MIC In , Phone Jack 3.5mm x1

  Output

  Ethernet / 12G-SDI / 3G-SDI / HDMI2.0 /
  USB 3.0

  Compression Format

  AAC / G.711/ PCM

  Interface

  RS-232 / RS-422 / Ethernet / USB 3.0 / Remote

  Protocol

  VISCA / VISCAIP / ONVIF / PELCO D / NDI / UVC / UAC

  DC In

  12V +/- 20%

  Power Consumption

  PoE : 40 W
  DC In : 40 W

  Weight

  6.6 lbs (3 kg)

  Dimension

  9.1” x 7.4” x 7.4”
  (232 x 188 x 189 mm)
